Tritex Metal Thickness Gauges

The Tritex Metal Thickness Gauge has been designed for hands free use when climbing on staging, scaffolding, ladders or when accessing by rope. Whether it’s onboard a ship, on large storage tanks; climbing on top of a road tanker or ultrasonic inspections underneath a bridge (sub merged), will measure the true thickness with end of the metal under inspection. Since it works on 'Triple Echo' method a stable readings are obtained even on a corroded, painted surface.

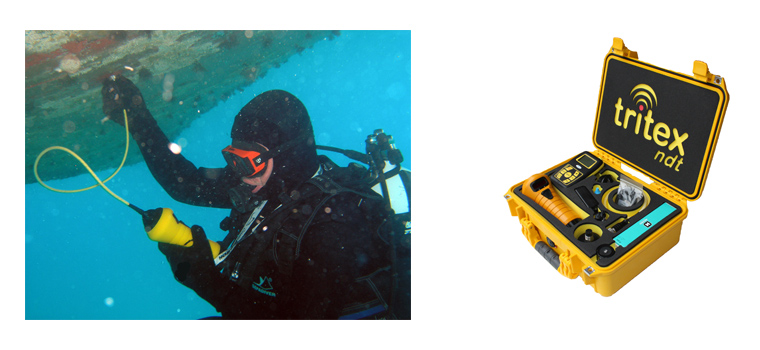

Underwater Thickness Gauge

The Multigauge 3000 Underwater Thickness Gauge is a simple, robust ultrasonic thickness gauge designed for most common underwater thickness gauging applications. The gauge is pressure tested to 500m and has the option to transfer measurements to a surface display unit with the simple addition of a replacement end cap. It has been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide. The gauge uses multiple echo which means measurements can be easily taken without the need to remove coatings and the large bright LED display ensures the display can be seen by the diver, even in poor visibility. The gauge is equipped with IPR (Intelligent Probe Recognition), which automatically adjusts settings in the gauge for enhanced performance and AMVS (Automatic Measurement Verification System) to ensure only true measurements are displayed, even on the most heavily corroded metals.

Applications:

• Large 10mm display for poor visibility.
• Ignores coatings using multiple echo.
• Pressure tested to 500m.
• Integral battery with 55 hour runtime on one fast charge. No need for a spare battery.
• Easy to use.
• No fuss upgrade option to a topside repeater.
• Rugged and robust.
• Intelligent probe recognition (IPR).
• Automatic measurement verification (AMVS).
• No zeroing required.

Ultrasonic Metal Thickness Gauge

The multigauge 5500 has been designed for hands free use when climbing on staging, scaffolding, ladders or when accessing by rope. Whether it’s onboard a ship, on large storage tanks, climbing on top of a road tanker or ultrasonic inspections underneath a bridge, the 5500 will measure the thickness with ease.

Applications:

• Shipping
• Bridges
• Pilings
• Storage Tanks
• Industry
• Quality Control
• Leisure Craft
• Pipelines
• Road Tankers
• Offshore Platforms
• Lighting Columns
• Phone Masts
• Lock Gates
• Barges

Underwater Thickness Multigauge

The Multigauge 3000 / 4100 and 4400 Underwater Thickness Gauges are simple, robust ultrasonic thickness gauges designed to be mounted onto all types of work class ROV’s. There are two models in the range, the Multigauge 4100 which has a depth rating of 1000m and the Multigauge 4400 which has a depth rating of 4000m. Both gauges have been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide. The gauges use multiple echo which means measurements can be easily taken without the need to remove coatings and the RS422 output makes connection to most ROV’s simple.

The gauge is equipped with IPR (Intelligent Probe Recognition), which automatically adjusts settings in the gauge for enhanced performance and AMVS (Automatic Measurement Verification System) to ensure only true measurements are displayed, even on the most heavily corroded metals

Applications:

• Ignores coatings using multiple echo
• Depth rating to 1000m and 4000m
• Easy to use data logging software
• Compatible with most ROV’s
• Designed for easy mounting.
• Rugged and robust
• Intelligent Probe Recognition (IPR)
• Automatic Measurement Verification (AMVS)
• No zeroing required
• Coating Plus+ for very thick coatings
